What aftermarket diff cover guys don't tell you!
What aftermarket diff cover guys don't tell you!
About This Product

Banks Ram-Air® differential cover extends lubrication life and retains fuel economy. Thanks to its superior fluid and aerodynamics, the Ram-Air® Cover out-performs stock and flat-back high-capacity covers and does so with less lubricant. Increased distance between service intervals and less lubricant means you'll save money while extending gear life.


2003-05 Dodge RAM 5.9L Non-HO
Will not fit 14-bolt 10.5" ring gear housing

This cover can be identified by two bottom bolts that are horiizontally aligned.


RAM 6.4L Gas Trucks
Customers must visually confirm which differential cover is installed from factory.
See Fitment Check Graphic Below.



Fitment Note
Sway Bar Spacers (#19249-2) required on Ram Trucks with OEM sway bar.

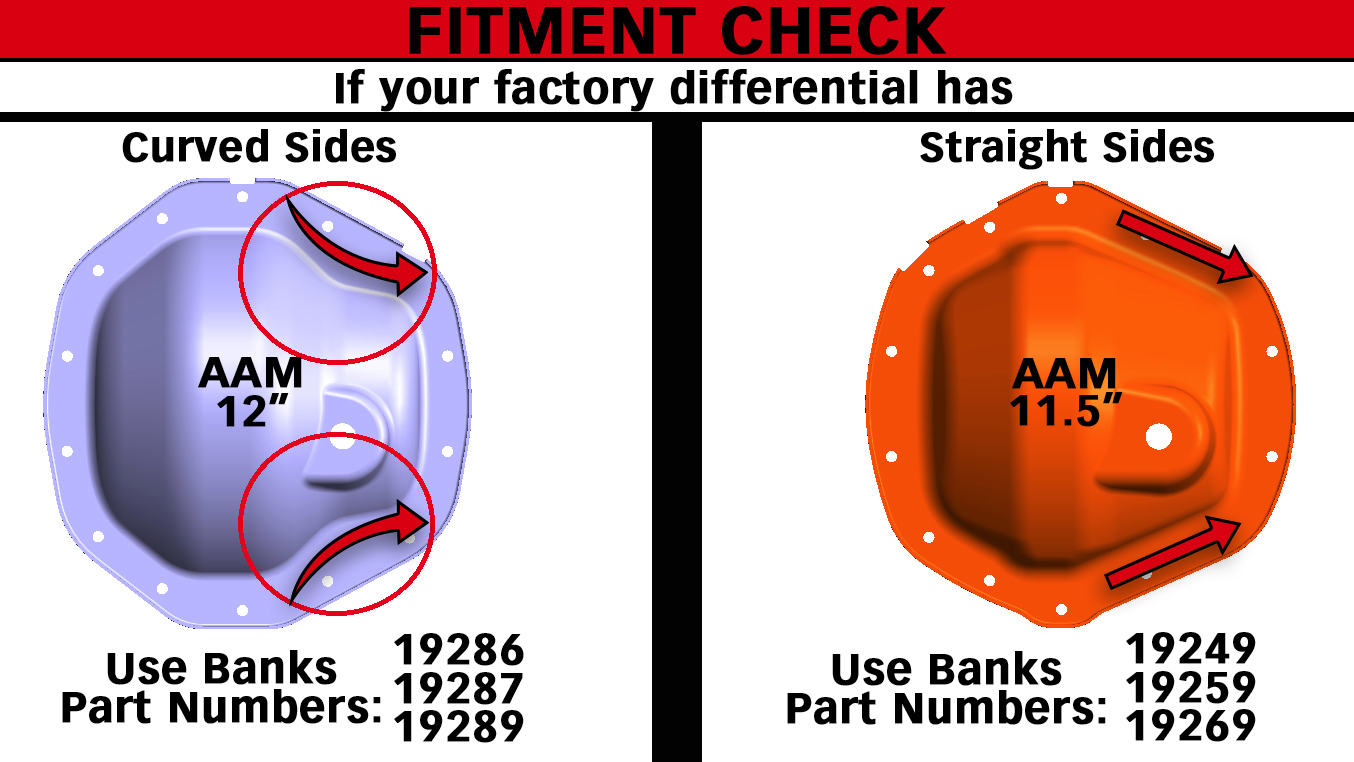

Diagram for AAM Fitment Check
Switch To 1928X Stay Here

Download and print out the fitment guide to check for clearance.

When using this guide for fitment, make sure that either (a) your truck's full weight is on the wheels, or (b) you lifted the truck by the diff.
Key Features
Key Highlights
  • New patented design features Ram-Air scoops for fastest cooling
    • Provides cold high velocity air, overcoming “dead air zone” behind differential
    • Scoops force air up and into massive heat radiation fins
    • Engineered to break-away if snagged on an obstacle
  • Banks cools 5X better than flat-back covers in on-road towing tests over the same road, same weather, operator and vehicle
  • Cools 118% better than flat-backs in 200hp 60mph sustained tests
  • Dry-mount high-pressure silicone O-ring seal. No messy RTV clean!
  • Internal fins transfer heat through the cover into the external fins
  • Clears spare tire heat shield, Panhard bars and other components
  • Does not sacrifice any ground clearance
  • Limited Lifetime Warranty
Fluid Dynamics
  • Axle tube lubricant guides directs lube to bearings w/o overfilling
  • Cover mates flush with differential housing for smooth fluid flow
  • Ring gear raceway controls fluid flow to the pinion and bearings
  • Low fluid aeration means longer fluid life
Technical Specs
  • Weight: 11.7 lbs
  • External heat radiation fin count: 24
  • Internal heat absorption fin count: 26
  • Dimensions: 14.2 in X 13.3 in X 3.8 in
  • External heat radiation fin surface area: 533.782 in2
  • Internal heat absorption fin surface area: 119.882 in2
  • External heat radiation total surface area: 808.81 in2
  • Internal heat absorption total surface area: 215.78 in2
  • Fasteners: 14 x stainless steel M8-1.25 flange hex bolts
  • Material: A380 aluminum diecast with CNC machined surfaces
  • Internal Volume: About 4.0 Qts (Check OEM Owners Manual)
Oil service
  • Magnetic drain plug
  • Magnetic fill port plug
  • 20° angled fill port for easy access
  • No need to remove cover to change fluid
  • 1/2 in sight glass with contrast screen (visual aid) and Viton seal
  • Banks recommends Amsoil 75W-90 Severe Gear Synthetic Gear Lube
  • Fill level depends on model year: (About 4.0Qts Fill To OEM Level)
Specifications
When it comes to product development, we only make products that increase performance and beat the competition. So when we tested the popular Diff Covers on the market, we were shocked to find out that they actually hurt performance. This lead to the development of something so New and Incredible that our performance design has a United States Patent.

Look, when we set out to build a product for your vehicle, we only engineer the best. What else would you expect from a company with a winning legacy that spans decades. We are here to win, and we just did (AGAIN) in a huge way
Why It's Better

Introducing the Banks Power Ram-Air® Diff Cover Kit

Patented design cools 5X better than flat-backs

Banks Ram-Air® differential cover extends lubrication life, retains fuel economy, and rejects heat faster than any other cover on the market.

Key Features

Die-Cast Aluminum Construction

A380 aircraft aluminum die-cast for exceptional strength and precise fit.

Magnetic Fill Plug

Magnetic fill plug. 20° angle for easy fill. Simplifies oil changes.

304 Stainless Steel Hardware

Hex flanged mounting bolts.

Sight-Glass with Contrast Screen

Sight-glass with contrast screen and Viton O-ring seal.

Class-Leading Heat Rejection

24 external radiator fins offer 534 square inches of surface area to ensure optimal heat rejection.

Magnetic Drain Plug

Recessed magnetic drain plug. Simplifies oil changes.

Patented Ram-Air Scoops

Ram-Air system directs cool high-velocity air through radiator fins, eliminating the dead zone. Designed with breakaway scoops.

NPT Sensor Port

1/8in NPT port for transmission temp monitoring

Key Features

Image showing a smooth radiused internal surface

Radiused Ports

Radiused ports for smoother fluid flow.
Animation depicting fluid flow

Directional Fluid Guides

Radiused ports for smoother fluid flow.
Animation highlighting covers O ring seal

O-Ring Seal

Integrated No Mess Viton Seal. Dry-mount silicon high-pressure O-ring seal. No messy RTV required.
Graphic highlighting covers machined surface

Precision Fit Machined Surface

CNC-machined surface ensures precise fit.
Animation showing internal fins obsorbing heat

Internal Heat Absorption Fins

26 Internal absorber fins offer 120 square inches of surface area to transfer heat to external radiator fins without disrupting fluid flow.
Animation showing oil drain process

Simple Fluid Change

No need to remove cover to change fluid.
Animation highlighting lubricant raceway

Lubricant Raceway

Ring gear raceway provides path for fluid flow to pinion and ring gear-bearing sets.No need to remove cover to change fluid.
Graphic showcasing Ram-Air scoops

Ram-Air System w/Breakaway Scoops

Ram-Air scoop break away point prevents damage if scoop is snagged.
Transparent animation showing differential internal design

Purpose Built

The Banks Engineering team’s goal was to perfect fluid flow and reject BTUs from the fluid as fast as the ring and pinion puts them in.

If the fluid flow is impeded in any way, it results in resistance and aeration which reduce fuel economy and creates heat, thereby degrading the fluid and decreasing the lifespan of the gearset.

Outperform The Competition, For Less

Thanks to its superior fluid and aerodynamics, the Ram-Air® Cover out-performs stock and flat-back high-capacity covers and does so with less lubricant.

Increased distance between service intervals and less lubricant means you'll save money while extending gear life.

Animation showing Banks Ram-Air Differentials superior fluid dynamics

Flat-Back Fail

Extra capacity "Flat-Back" covers have worse fluid dynamics than stock.

Effectively splattering oil at a wall reducing lubrication on key components and increasing wear-tear and heat.

2D Animation showing Flat-Back covers flawed design

Banks Does It Right

With the proper distance between the ring gear and raceway, oil is lifted up and around the differential.

The internal fluid guides directs the flow exactly to where it's needed.

2D Animation showing Banks Ram-Air Differentials superior fluid dynamics
2D Animation showing Flat-Back covers poor cooling ability

Flat-Backs Dead Air

The competition has no way of directing airflow, their covers leave a deadzone so temperatures rise faster and fall slower, meaning your oil works harder and components wear faster, costing you fuel economy

2D Animation showing Banks Ram-Air scoops superior cooling ability

Ram-Air Engineering

The Banks differential cover is fundamentally different from its competition because it utilizes Ram-air scoops that direct air through channeled fins, cooling the differential and internal oil temperatures.

Heat Radiation Comparison

The Banks Ram-Air cover features deep external fins with 169% more exterior heat radiation surface area than Mag-Hytec, or over 4.5x that of the factory cover.

Bar chart comparing external heat radiation surface area. Banks has 169% more than flat-backs.

Heat Absorption Comparison

The 26 internal heat absorption fins add an extra 120in2 to pull heat, or almost 70% more area than stock.

Bar chart comparing internal heat absorption area. Banks Ram-Air has 21% more than flat-backs.

The Superior Choice, Backed by 18 Months of Testing

What began with a simple question, resulted in millions of video views, innovation, and another patented Banks product.

All other manufacturers simply copied previous designs. They all run on the belief that "more oil means cooler temps."

The Banks Engineering Team uncovered two underlying problems with aftermarket covers; poor air flow and flawed fluid dynamics. The Banks Ram-Air® differential cover solves both issues.

Test chart showing Banks superior cooling vs AFE and Stock. Banks design cools 118% better.

Keeps Your Diff Cool

Tests were performed on a stretch of California’s infamous Grapevine (Interstate 5) on the same truck, with the same driver and the same load, at the same time of day and same temperature

After testing covers with flat-backs and those with larger fluid capacities, it was apparent that these covers do not cool as well as advertised, suffer from poor fluid dynamics, and they all make no use of airflow to cool actively

Test chart showing Banks superior cool down ability vs AFE and Stock. Banks design cools 4X better.
Picture showing 4 pouches of Amsoil lubricant

Banks Recommends Amsoil Lubricant

We searched for information on every popular brand of gear oil. The only company with in-depth knowledge and the willingness to share it was AMSOIL.

They are every bit as thorough in their development as we are. The more info we discovered, the more we liked how AMSOIL designs and test their products.

If you want to see for yourself, here is a link to their 75w90 test results.

Chart showing fill quanity compared to a flat-back. Banks maintains OE level

Maintains OE Fill Level

We decided to stick with the manufacturer's suggested viscosity and use AMSOIL Severe Gear Synthetic Extreme Pressure Gear Lube.

Fill level remains at the recommended levels as factory.

Check owners manual for recommended fill level for your specific vehicle.

Ground Clearance

Our patented Ram-Air scoops are designed to increase airflow over the rear differential without sacrificing ground clearance. In fact, our differential cover retains the same low point as factory and competitors.

Image of stock, fallback, and banks covers. Banks Ram-Air maintains OE low point.

Fitment Note

Have a Rear Sway Bar Installed or Airbag Suspension?

Make sure you add the Sway Bar Spacer Kit add-on option.

Photo showing sway-bar spacers

Make sure you add the Sway Bar Spacer Kit add-on option.

animation comparing factory differential cover size vs Banks Ram-Air
Download and print out the fitment guide to check for clearance.

When using this guide for fitment, make sure that either:
(a) your truck's full weight is on the wheels, or
(b) you lifted the truck by the diff.

When the truck is lifted off the ground, your swaybar (if you have one) moves and may cause a false fitment reading.

2D blueprint showing cross sections of factory differential cover vs Banks Ram-Air Cover
Manuals

Ram-Air Differential Cover Kit

SKU #19269

2001-2019 Chevy/GMC, 2003-2018 RAM with AAM 11.5" or 11.8" 14 Bolt Rear Axle
2019-2024 RAM 6.4L See Fitment Note

Patented design cools 5X better than flat-backs

in stock, ready to ship!
$395.00
MSRP: $438.89

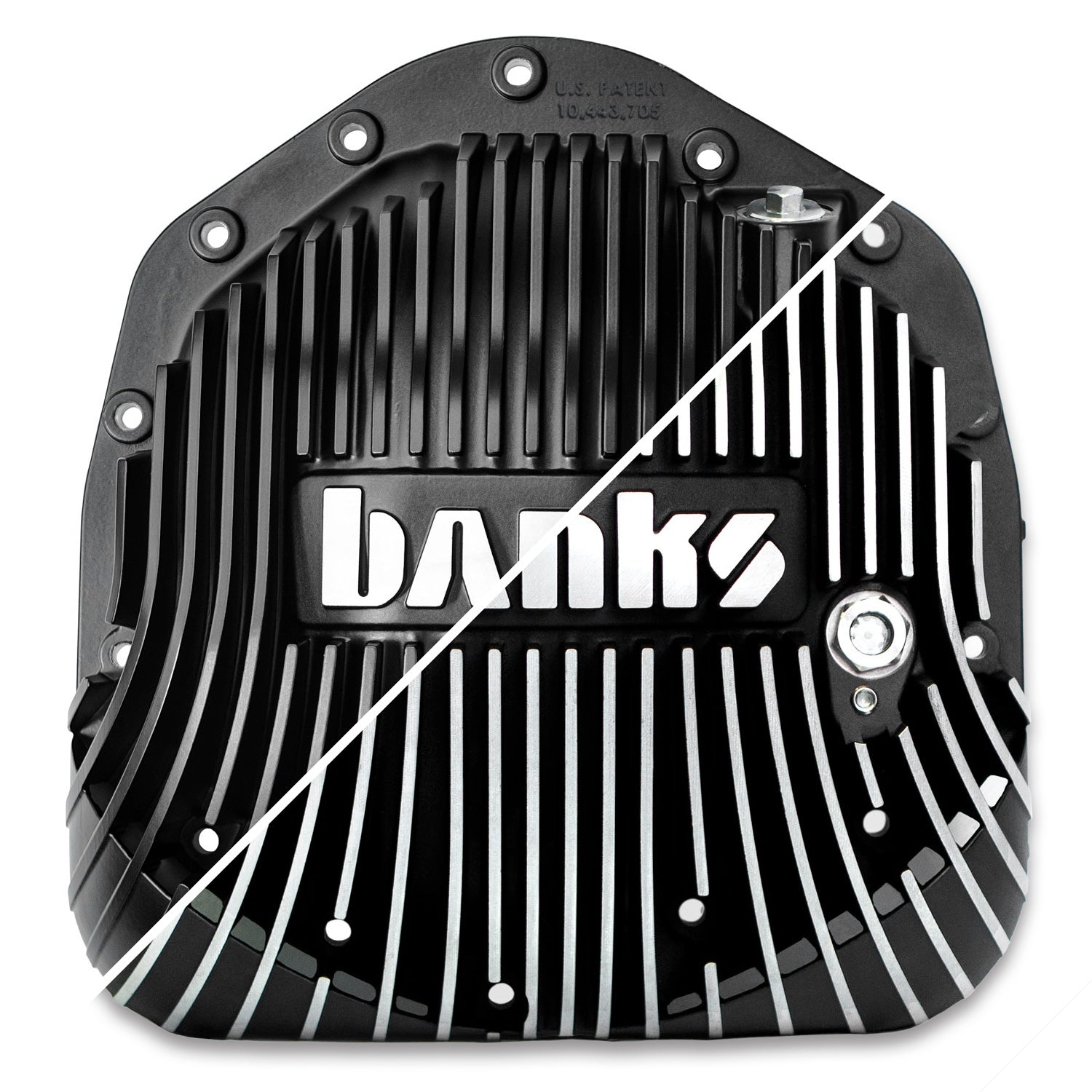

Choose Your Ram-Air Differential Cover Kit
