HOW TO INCREASE COLD START HEAT
HOW TO INCREASE COLD START HEAT

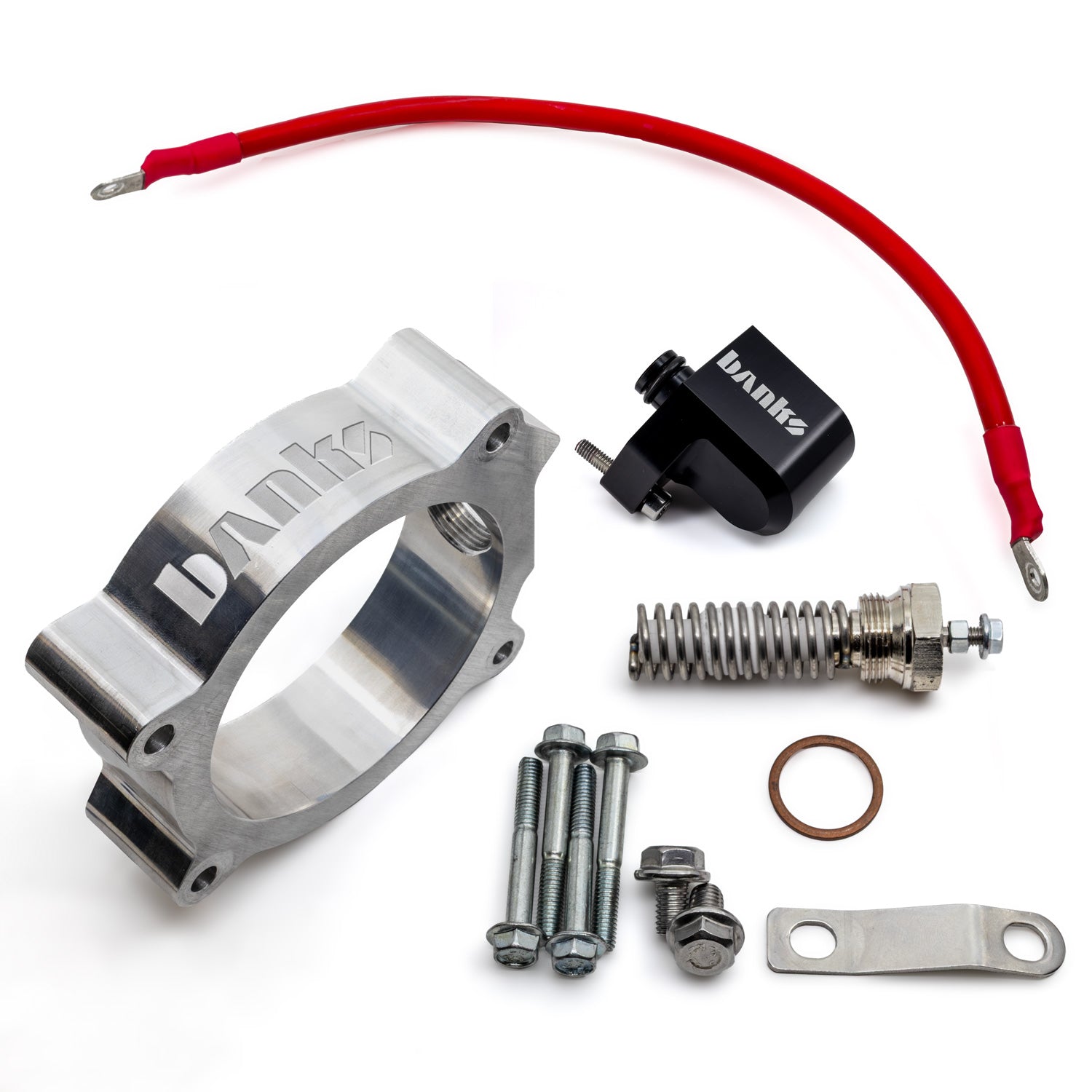

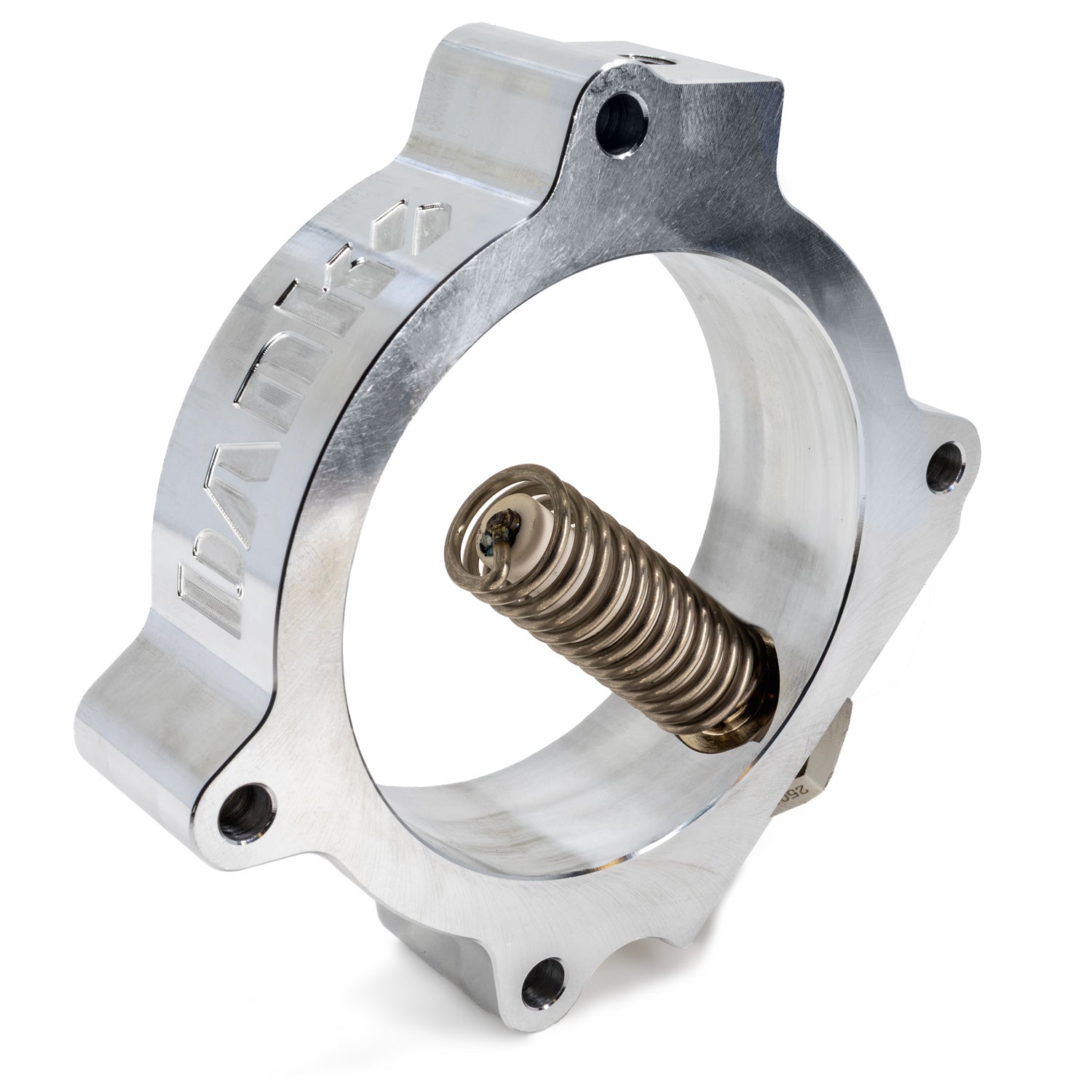

750 Watt Billet Heater Kit

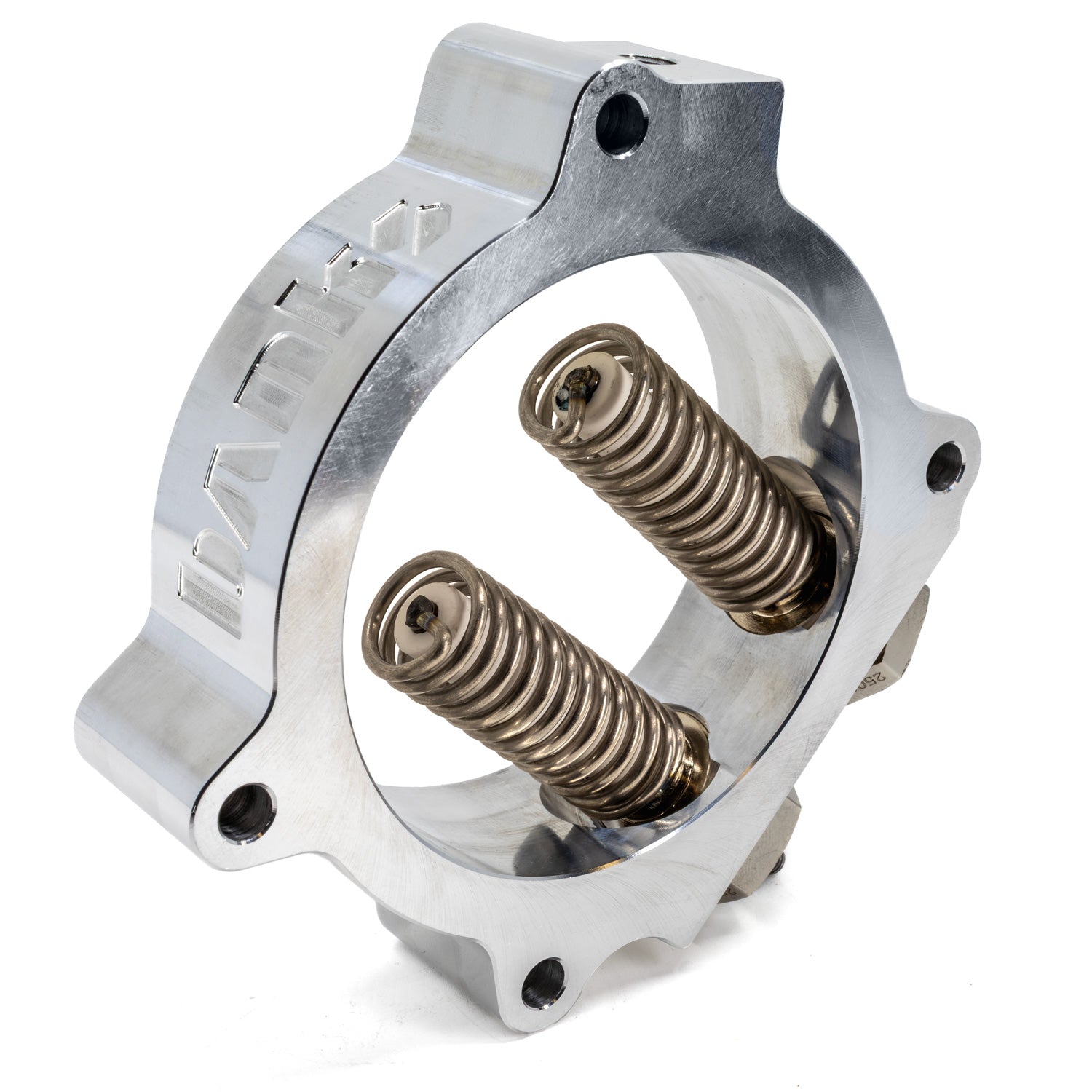

1500 Watt Dual Billet Heater Hero
Banks Monster-Ram 750 Watt Heating Kit Assembled

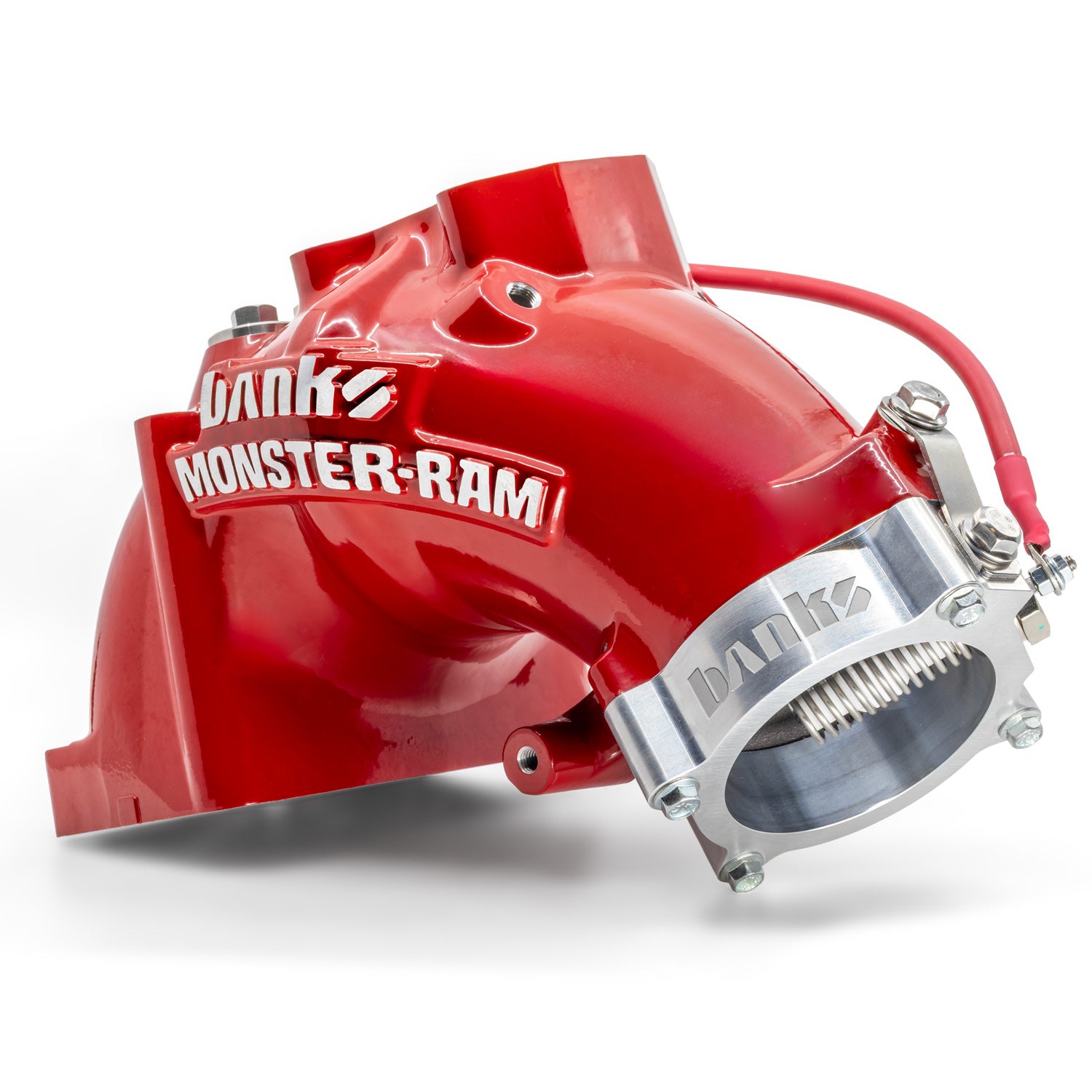

Monster-Ram with 750 Watt Billet Heater Kit

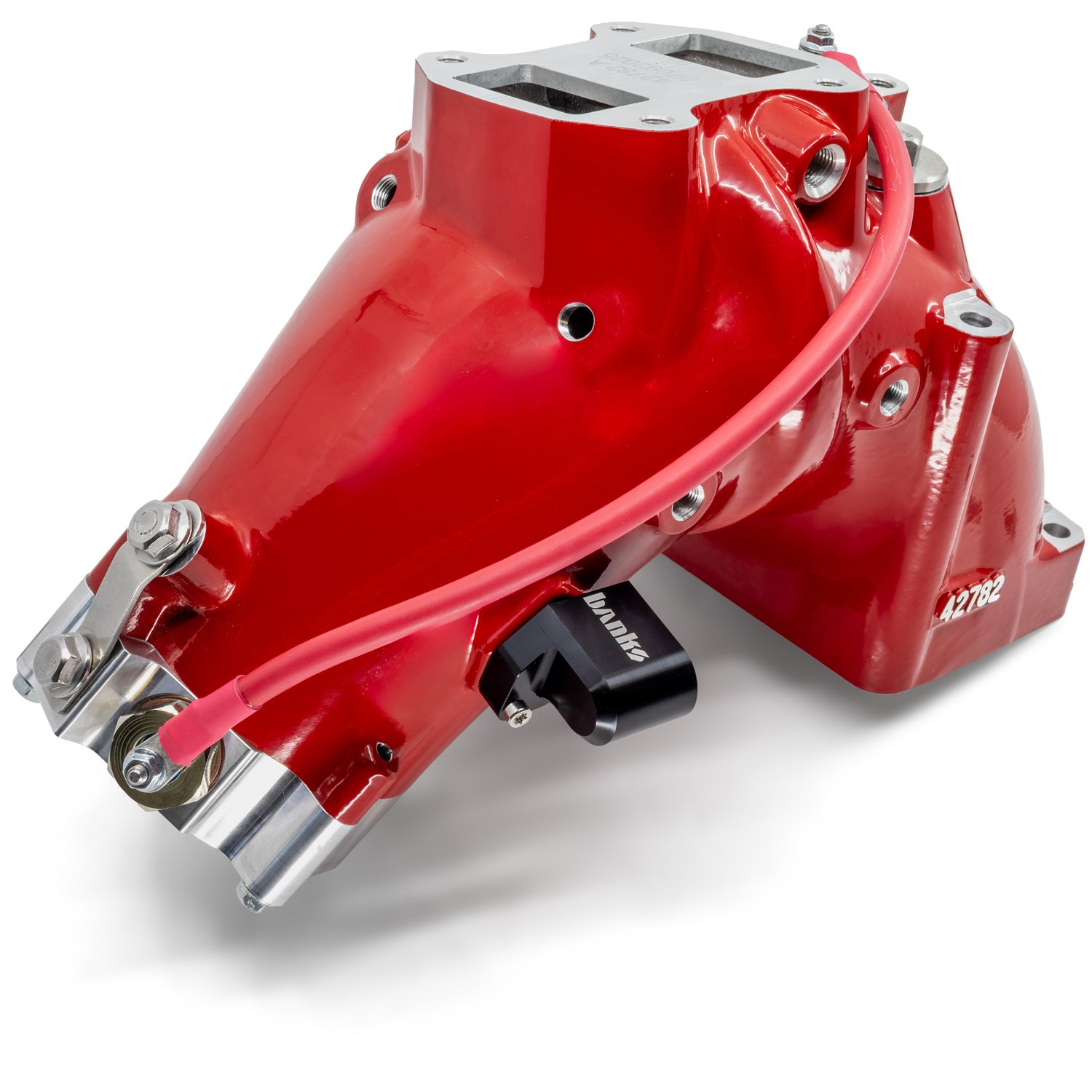

Monster-Ram with 750 Watt Billet Heater Kit From Behind

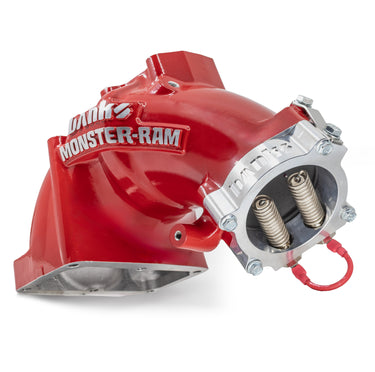

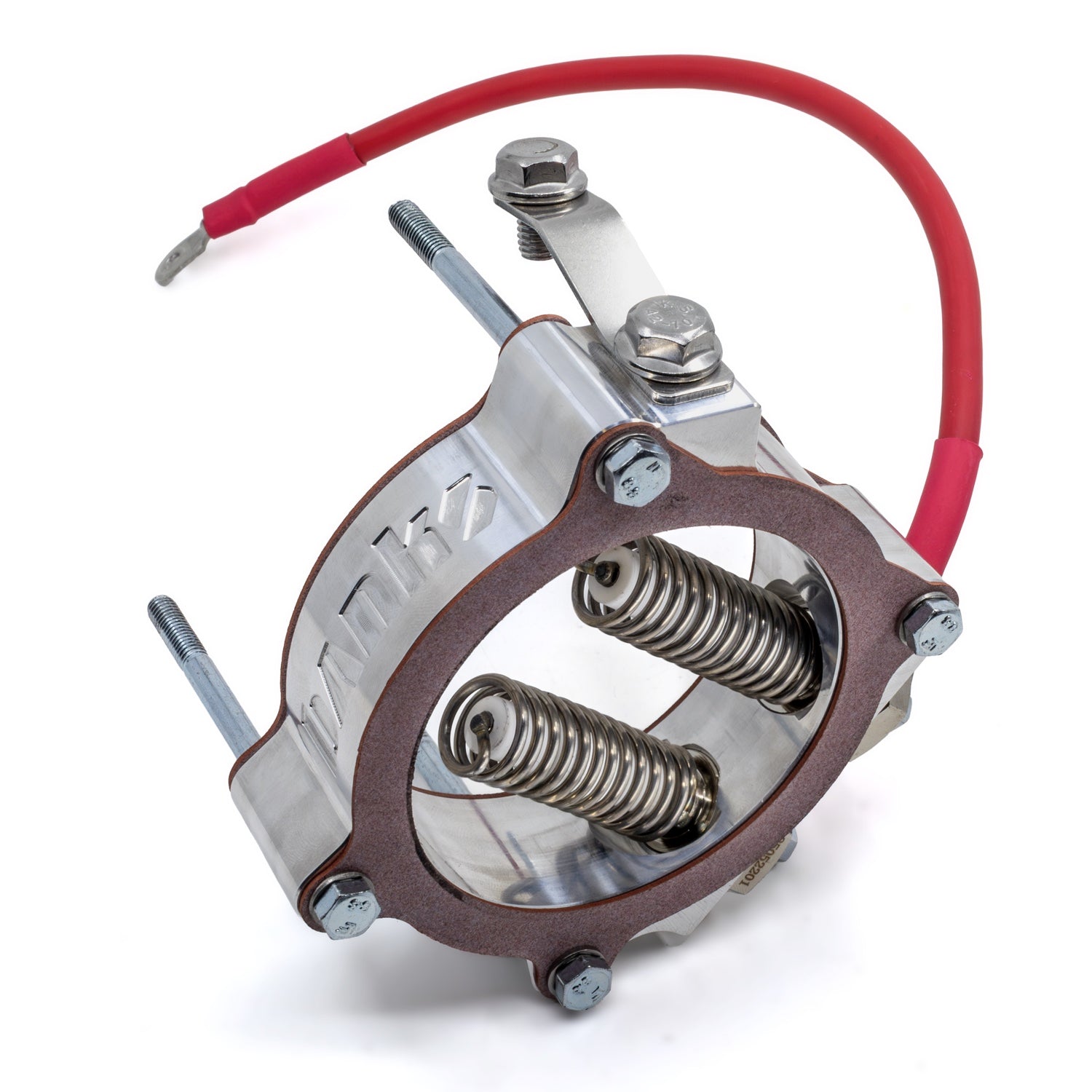

Banks Monster-Ram 1500 Watt Heating Kit Assembled
750 Watt Billet Heater Kit
1500 Watt Dual Billet Heater Hero
Banks Monster-Ram 750 Watt Heating Kit Assembled
Monster-Ram with 750 Watt Billet Heater Kit
Monster-Ram with 750 Watt Billet Heater Kit From Behind
Banks Monster-Ram 1500 Watt Heating Kit Assembled
Banks Power

Needed this installed for subzero winters. Works great! Super easy retrofit.

  Thomas R — Fort McMurray, BC

Key Features

Installs and removes in minutes without removing your Monster-Ram®
Includes:
  • 750 Watt Coil Heater(s)
  • Billet Aluminum Body
  • Black Anodized MAP Sensor Relocation Block
  • Heater Coil Extension Wire(s)

Why You Need It

Add the Banks 750 Watt or 1,500 Watt Billet Heater Kit to your Monster-Ram® to aid cold-weather starts. Increases total heat output in the Single Heat Monster-Ram® to 2,250 watts or up to 3,000 watts in the new Dual Heat Capable Monster-Ram®.

How It Works

Doubles or triples your Banks Monster-Ram®'s heat output, from 750 watts to 1,500 or 2,250 watts.
Monster-Ram with 750 Watt Billet Heater Kit From Behind
Monster-Ram with 750 Watt Billet Heater Kit SHowing Internal Coil

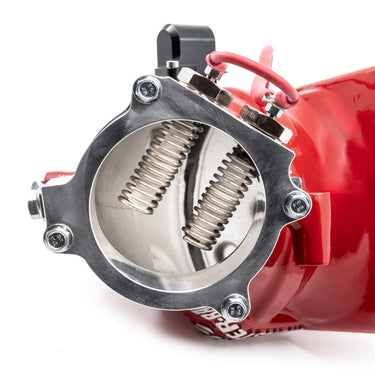

1500W Billet Heater Installed
Bolt On
Add 750 Watts
Add 1,500 Watts

Simply bolt on the 750-Watt or 1,500-Watt Billet Heater Kit and connect it with the supplied cable.

Built To Survive

Available in a single 750 Watt or 1,500 Watt configuration, this simple bolt-on kit requires no maintenance. Unlike the restrictive, failure-prone factory Cummins grid heater, Banks coil heaters are designed to fail safely, avoiding catastrophic engine damage.
Monster-Ram with 750 Watt Billet Heater Kit
750 Watt
1500 Watt

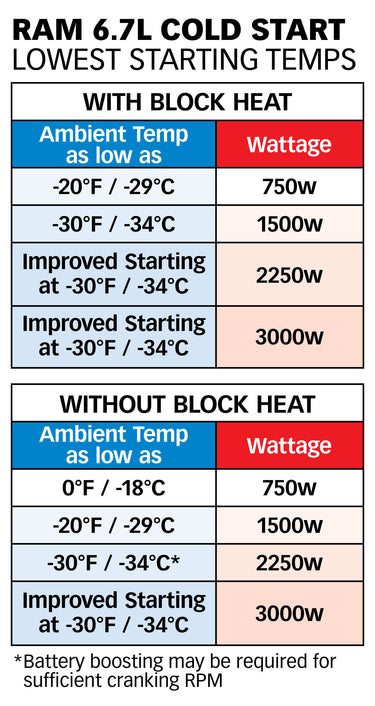

Cold Start Test Criteria

We followed RAM's cold start recommendations. Per the owner’s manual, RAM recommends the use of the block heater when the temperature drops below 0°F/-17°C and mandates the block heater at temperatures below -20°F/-29°C.

Using a controlled climate chamber, our first test utilized block heat and two Banks coil heaters (1500 watts total). The Monster-Ram® enabled our test truck to cold start down to -30°F/-34°C.

Against RAM’s recommendations, we also attempted to cold start with the same two coil heaters and no block heat. We were able to cold start down to -20°F/-29°C. Adding a third coil heater (2,250 watts total), the truck started at -30°F/-34°C.*

All tests were performed with two intake air pre-heat cycles per the owner’s manual. Intake air temperature is just one factor contributing to a successful cold start. Individual results may vary depending on your vehicle’s age and overall condition. Testing is ongoing with a detailed video forthcoming.

*Battery boosting may be required for sufficient cranking RPM.

Test Vehicle Configuration

  • 2024 Ram 2500 4x4 Tradesman, dual cab short bed
  • Mileage 7,8XX
  • Vehicle unmodified apart from Monster-Ram®
  • Minimum 12-hour cold soak at specified temperature
  • #1 Diesel fuel
  • AMSOIL Signature Series 5W40 motor oil
  • New Interstate AGM batteries with full state of charge
  • New MOPAR fuel filter
  • New MOPAR fuel/water separator
  • New MOPAR air filter
About This Product

Add the Banks 750 Watt or 1,500 Watt Billet Heater Kit to your Monster-Ram® to aid cold starts in severe temperatures. Remove the kits in minutes for non-winter months.
Fitment Note
The included MAP relocation kit is for use with a Banks Monster-Ram with a billet heater kit and will not fit stock intake horns.
This Banks 750W or 1500W Billet Heater Kit
fits the following vehicles:
click to expand

Dodge

Dodge Ram 2500

  • Dodge Ram 2500 | 6.7L Diesel 2010
  • Dodge Ram 2500 | 6.7L Diesel 2009
  • Dodge Ram 2500 | 6.7L Diesel 2008
  • Dodge Ram 2500 | 6.7L Diesel 2007

Dodge Ram 3500

  • Dodge Ram 3500 | 6.7L Diesel 2010
  • Dodge Ram 3500 | 6.7L Diesel 2009
  • Dodge Ram 3500 | 6.7L Diesel 2008
  • Dodge Ram 3500 | 6.7L Diesel 2007

Dodge Ram 4500

  • Dodge Ram 4500 | 6.7L Diesel 2010
  • Dodge Ram 4500 | 6.7L Diesel 2009
  • Dodge Ram 4500 | 6.7L Diesel 2008
  • Dodge Ram 4500 | 6.7L Diesel 2007

Dodge Ram 5500

  • Dodge Ram 5500 | 6.7L Diesel 2010
  • Dodge Ram 5500 | 6.7L Diesel 2009
  • Dodge Ram 5500 | 6.7L Diesel 2008
  • Dodge Ram 5500 | 6.7L Diesel 2007

Ram

Ram 2500

  • Ram 2500 | 6.7L Diesel 2024
  • Ram 2500 | 6.7L Diesel 2023
  • Ram 2500 | 6.7L Diesel 2022
  • Ram 2500 | 6.7L Diesel 2021
  • Ram 2500 | 6.7L Diesel 2020
  • Ram 2500 | 6.7L Diesel 2019
  • Ram 2500 | 6.7L Diesel 2018
  • Ram 2500 | 6.7L Diesel 2017
  • Ram 2500 | 6.7L Diesel 2016
  • Ram 2500 | 6.7L Diesel 2015
  • Ram 2500 | 6.7L Diesel 2014
  • Ram 2500 | 6.7L Diesel 2013
  • Ram 2500 | 6.7L Diesel 2012
  • Ram 2500 | 6.7L Diesel 2011

Ram 3500

  • Ram 3500 | 6.7L Diesel 2024
  • Ram 3500 | 6.7L Diesel 2023
  • Ram 3500 | 6.7L Diesel 2022
  • Ram 3500 | 6.7L Diesel 2021
  • Ram 3500 | 6.7L Diesel 2020
  • Ram 3500 | 6.7L Diesel 2019
  • Ram 3500 | 6.7L Diesel 2018
  • Ram 3500 | 6.7L Diesel 2017
  • Ram 3500 | 6.7L Diesel 2016
  • Ram 3500 | 6.7L Diesel 2015
  • Ram 3500 | 6.7L Diesel 2014
  • Ram 3500 | 6.7L Diesel 2013
  • Ram 3500 | 6.7L Diesel 2012
  • Ram 3500 | 6.7L Diesel 2011

Ram 4500

  • Ram 4500 | 6.7L Diesel 2024
  • Ram 4500 | 6.7L Diesel 2023
  • Ram 4500 | 6.7L Diesel 2022
  • Ram 4500 | 6.7L Diesel 2021
  • Ram 4500 | 6.7L Diesel 2020
  • Ram 4500 | 6.7L Diesel 2019
  • Ram 4500 | 6.7L Diesel 2018
  • Ram 4500 | 6.7L Diesel 2017
  • Ram 4500 | 6.7L Diesel 2016
  • Ram 4500 | 6.7L Diesel 2015
  • Ram 4500 | 6.7L Diesel 2014
  • Ram 4500 | 6.7L Diesel 2013
  • Ram 4500 | 6.7L Diesel 2012
  • Ram 4500 | 6.7L Diesel 2011

Ram 5500

  • Ram 5500 | 6.7L Diesel 2024
  • Ram 5500 | 6.7L Diesel 2023
  • Ram 5500 | 6.7L Diesel 2022
  • Ram 5500 | 6.7L Diesel 2021
  • Ram 5500 | 6.7L Diesel 2020
  • Ram 5500 | 6.7L Diesel 2019
  • Ram 5500 | 6.7L Diesel 2018
  • Ram 5500 | 6.7L Diesel 2017
  • Ram 5500 | 6.7L Diesel 2016
  • Ram 5500 | 6.7L Diesel 2015
  • Ram 5500 | 6.7L Diesel 2014
  • Ram 5500 | 6.7L Diesel 2013
  • Ram 5500 | 6.7L Diesel 2012
  • Ram 5500 | 6.7L Diesel 2011
Installation and Support
Banks Dual Heater and Billet Heater Upgrade Kit Wiring Diagrams

Banks 750W or 1500W Billet Heater Kit

Includes Banks coil heater(s), billet aluminum heater body, TMAP Relocation Kit, and all mounting and connecting hardware

SKU #42809

2007.5-2024 Dodge/RAM 2500/3500 6.7L Diesel with Monster-Ram

Increases cold starting heat by 750W or 1,500W

Limited Inventory
$198.00
